Features

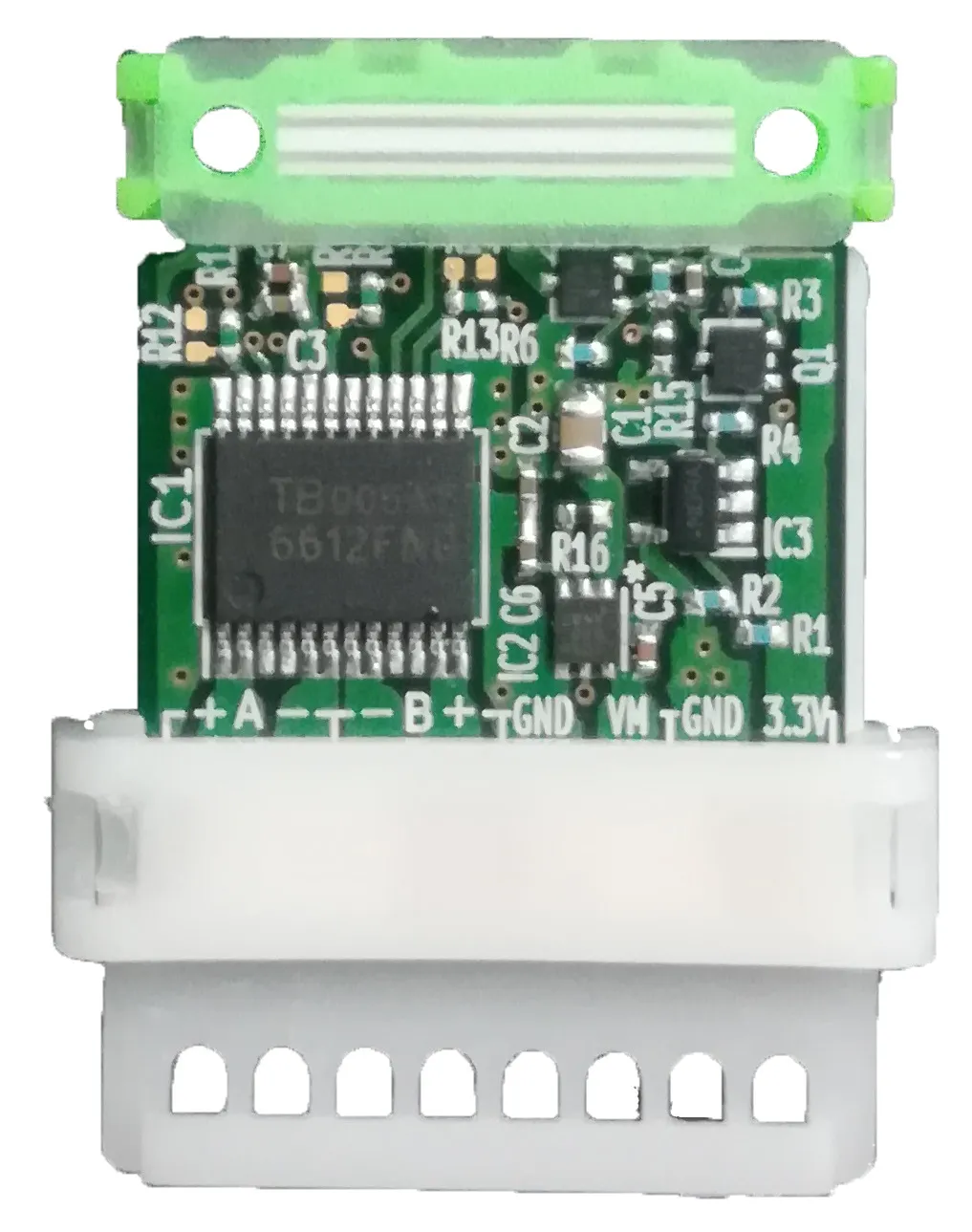

Drive two DC motors (motors powered by direct current) from an MCU (microcontroller) leaf with the onboard TB6612FNG motor driver. Provide the motors or pump and a motor power supply separately, and connect them through the harness. Check the specifications below for the supported voltage and current.

For example, combine it with a BLE communication leaf and an electric pump to switch the pump on or off from a compatible smartphone and water plants. See Watering plants with a motor for the example.

Specification

Item	Description
Part number	TB6612FNG
Motor Supply Voltage	2.5V~13.5V
Output current (Vm≧4.5V)	1A
Output current (4.5V>Vm≧2.5V)	0.4A
Dimension	W25.6×D30.9×H4.7mm

Block diagram

Pinassign

Tips

Harness Connection

Pin	Description
1	Motor A+
2	Motor A-
3	Motor B-
4	Motor B+
5	GND
6	Motor Supply (Vm)
7	GND
8	3.3V
