AVR MCU: PlatformIO Setup

Use PlatformIO IDE to set up the development environment for the AP01 AVR MCU leaf (ATmega328P, 3.3 V, 8 MHz).

Introduction

Visual Studio Code (VS Code) is Microsoft’s lightweight source-code editor for Windows, macOS, and Linux. PlatformIO IDE is a VS Code extension with fast builds and per-project management of library and board versions.

What to prepare

• Basic Kit 2
• A Windows, macOS, or Linux computer

Advance preparation

Install Python

PlatformIO IDE requires Python. Follow the Python installation guide (Japanese) to install it.

Install PlatformIO IDE

1. Install VS Code.

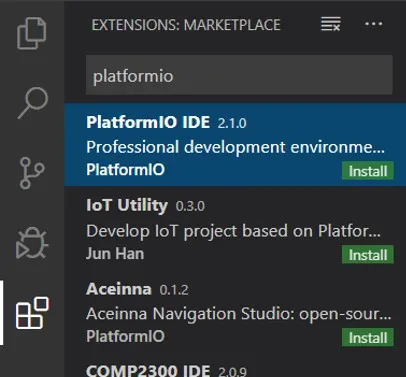

2. Open Extensions in the left sidebar and install the following extensions:
   • Japanese Language Pack for Visual Studio Code (for the Japanese interface shown in the source guide)
   • PlatformIO IDE
   • Serial Monitor
   • Teleplot

Getting Started

Create a new project

This Hello World example introduces the PlatformIO IDE workflow.

1. Start VS Code and open File → New Window.
2. Select PlatformIO in the left sidebar to open PLATFORMIO QUICK ACCESS.
3. Select PIO Home → Open.
4. Select New Project and fill in the Project Wizard, then select Finish. The first setup for a board may take several minutes to download its files.
   • Name: Hello_World_Pjt
   • Board: Arduino Pro or Pro Mini ATmega328(3.3v,8Mhz)
   • Framework: Arduino
5. Open platformio.ini and check the board and framework settings:

[env:pro8MHzatmega328]
platform = atmelavr
board = pro8MHzatmega328
framework = arduino

6. The AVR MCU upload workflow detects the serial port automatically, so a COM port number does not need to be specified.
7. Add the serial monitor baud rate to platformio.ini:

monitor_speed = 115200

8. Open src/main.cpp and paste the following code. PlatformIO requires #include <Arduino.h> at the beginning of an Arduino sketch.

#include <Arduino.h>

void setup() {
  Serial.begin(115200);
  delay(10);
}

void loop(){
  Serial.println("Hello World");
  delay(1000);
}

Source code: Hello_World_Pjt

9. Use Project Environment Switcher in the bottom PlatformIO toolbar to select the correct active project, then select Build.

10. Connect Leafony to the computer as shown in Connecting to PC.
11. Select Upload to upload the program to the MCU.
12. Press the MCU reset button to run the program.
13. Open Serial Monitor and check that Hello World appears.

Install the library

Add library dependencies with lib_deps = at the end of platformio.ini. You can specify a GitHub URL or select a library through Libraries.

The library references for each leaf are listed below.

Item	lib_deps	Tags	Description
BLE	https://github.com/Leafony/TBGLib		Bluetooth library
4-Sensors	adafruit/Adafruit Unified Sensor@^1.1.6		Unified sensor driver
	adafruit/Adafruit BusIO@^1.14.1		Bus IO library
	https://github.com/ameltech/sme-hts221-library		Temperature and humidity sensor library
	closedcube/ClosedCube OPT3001@^1.1.2		Illuminance sensor library
	adafruit/Adafruit LIS3DH@1.1.2	1.1.2	Accelerometer library
LCD	tomozh/ST7032@0.0.0-alpha+sha.501bf64fe6		LCD library
AVR MCU	paulstoffregen/MsTimer2@^1.1		Timer interrupt library
RTC&MicroSD	adafruit/RTClib@^2.1.1		RTC library
STM32 MCU	stm32duino/STM32duino RTC @1.2.0	1.2.0	STM32RTC library
	stm32duino/STM32duino Low Power@^1.2.2		STM32LowPower library
LTE-M	https://github.com/Leafony/LteLeafV4		LTE-M library

Serial plotter

To plot serial data as in Arduino IDE, use the Teleplot for VSCode extension. Download and try the sample below.

1. Download Teleplot_Example_1 from GitHub and save it in your project folder.¹
2. Run the program.
3. Select teleplot at the bottom of the window, choose the COM port, and select Open to display the graph.
4. Teleplot plots serial messages in the form >varName:1234\n. See the Teleplot documentation for details.

 // Plot a sinus
  Serial.print(">sin:");
  Serial.println(sin(i));

  // Plot a cosinus
  Serial.print(">cos:");
  Serial.println(cos(i));

AVR Beginner Examples

Download the sample projects from GitHub, save them in your project folder,¹ and run them in PlatformIO IDE.

Item	Source code
Temperature and humidity sensor	Thermo-Hygrometer_Pjt
Illuminance sensor	Illuminance_Meter_Pjt
Accelerometer	Accelerometer_Pjt

Tips

MCU and board settings

Type	Leaf	Platform	Board	Upload
AP01	AVR MCU	atmelavr	Arduino Pro or Pro Mini ATmega328(3.3v,8Mhz)	Automatic COM port detection
AP02	ESP32 MCU	Espressif 32	Espressif ESP32 Dev Module	Automatic COM port detection
AP03	STM32 MCU	ststm32	LEAFONY_AP03	COM port cannot be detected automatically

Differences from Arduino IDE sketches

1. Add #include <Arduino.h> at the beginning of the program. Arduino IDE includes basic type definitions and commonly used headers automatically; PlatformIO requires the explicit include.
2. Define custom functions before they are called, or add a prototype declaration. Arduino IDE prepares declarations automatically, while PlatformIO follows normal C++ rules.

The following example fails to build because the function is defined after its first use:

void setup() {
  // put your setup code here, to run once:
  func();

}

void func() {
  ;
}

This example builds because the function is defined before its use:

void func() {
  ;
}

void setup() {
  // put your setup code here, to run once:
  func();

}

This example also builds because it includes a prototype:

// Prototypes
void func(void);

void setup() {
  // put your setup code here, to run once:
  func();

}

void func() {
  ;
}

Rename or delete a project folder

New Project in the Project Wizard creates a folder under ~/Documents/PlatformIO/Projects by default. Rename or delete that folder directly in your file manager.

Change the project folder location

Configure the location from the terminal:

1. Start VS Code and open File → New Window.
2. Select PlatformIO in the sidebar to open PLATFORMIO QUICK ACCESS.
3. Select PIO Home → Open.
4. Run pio settings set projects_dir <absolute-path> with your desired folder’s absolute path.
5. Restart VS Code.

Reference

• PlatformIO documentation

Footnotes

1. The default Windows folder is C:\Users\<username>\Documents\PlatformIO\Projects. ↩ ↩²
