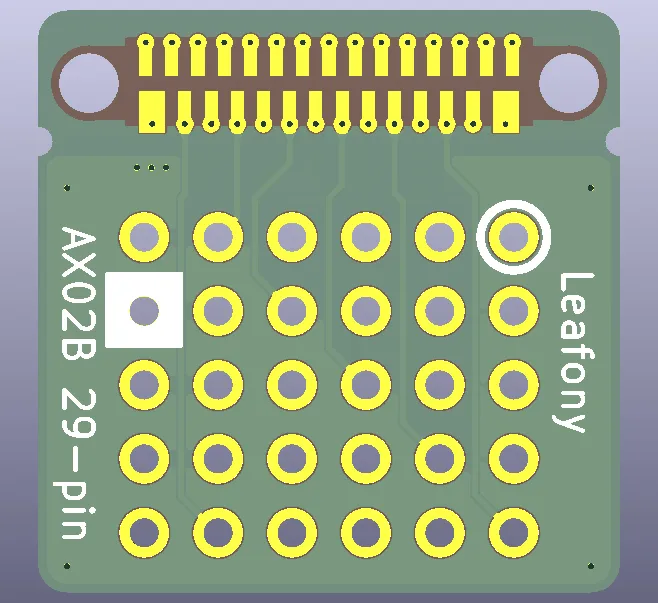

These photos show the AX02B board from the front, back, and an angle.
Features
Connect leaf signal and power lines to external circuits for prototyping and signal checks. This leaf brings all 29 pins of the Leafony Bus out to 2.54 mm pitch through-hole pads, allowing connections to breadboards or universal boards using jumper wires or pin headers.
AX02B is a minor revision of AX02 29 pin with changes to the PCB layout and silkscreen. It uses the same schematic as AX02 and is electrically compatible.
- Converts the 29 pins of the Leafony Bus to 2.54 mm pitch through-hole pads
- Leafony standard 20 mm square leaf shape
Specification
| Item | Description |
|---|---|
| Board dimensions | W20×D20mm |
| Pin pitch | 2.54mm |
Pin assignment
“Port” in the diagram indicates the through-hole number connected to each Leafony Bus pin.

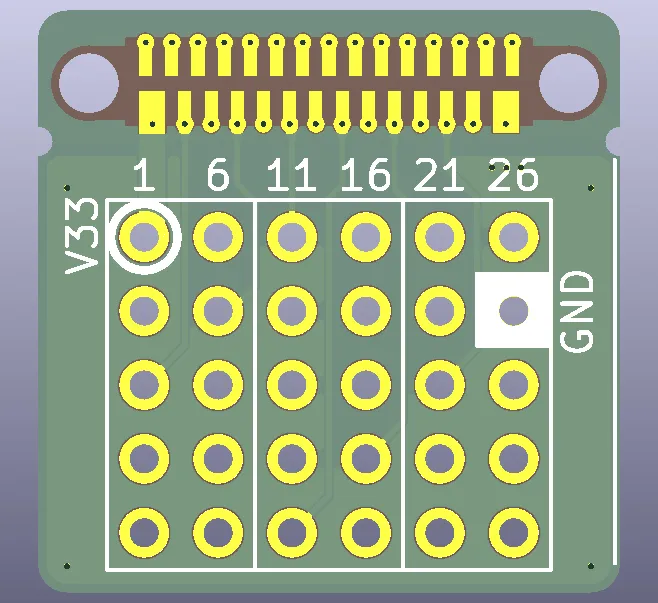

Viewed from the top with the Leafony Bus contacts at the top, the pin numbers advance downward in groups of five from the upper left. The through-holes are arranged in six columns and five rows, with the bottom-right hole not connected (NC).
| Column | Pins |
|---|---|
| 1 | 1, 2, 3, 4, 5 |
| 2 | 6, 7, 8, 9, 10 |
| 3 | 11, 12, 13, 14, 15 |
| 4 | 16, 17, 18, 19, 20 |
| 5 | 21, 22, 23, 24, 25 |
| 6 | 26, 27, 28, 29, NC (not connected) |
In the KiCad schematic, Leafony Bus F1 through F29 are connected to the through-hole pads.
For Leafony Bus pin assignment data, see Leaf-pinassign.
Documents
Refer to the following dedicated files for the AX02B layout and silkscreen.
- GitHub repository
- Schematic (PDF)
- PCB layout (PDF)
- KiCad project
- Schematic (KiCad)
- PCB layout (KiCad)
- Manufacturing data
- Panelized manufacturing data
Revision history
- May 2026: First edition
